1.arduino的OLED屏汉字显示

1. 字模显示原理及取模软件的使用

我们使用的OLED屏是由方形的发光点阵列组成的，分辨率为128x64。英文和数字最小可用8x8像素，汉字最小显示像素为16x16，通常为了显示效果，英文和数字通常使用8x16像素表示。要显示需要的字符只需对应点亮像素区域中对应的发光点即可。



字模一般都是通过取模软件生成的，接下来介绍「PCtoLCD」取模软件的使用：

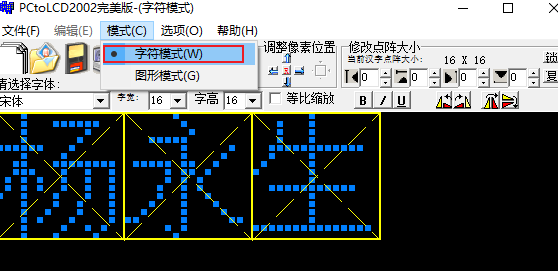

1. Windows系统下双击启动软件，点击「模式」，选择「字符模式」，通常默认就是字符模式。

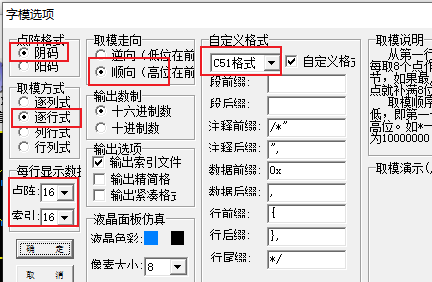

2. 点击「选项」进行字模配置。通常字模配置要根据程序驱动方式来选择，本篇中我们选择阴码、逐行式、顺向，其他选项如下图所示。

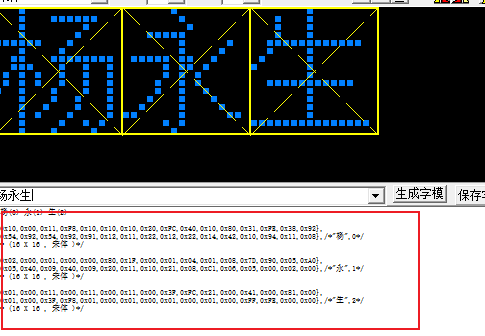

3. 输入汉字。点击生成字模或者保存字模，就会得到对应的点阵数据。

 杨(0) 永(1) 生(2)

{0x10,0x00,0x11,0xF8,0x10,0x10,0x10,0x20,0xFC,0x40,0x10,0x80,0x31,0xFE,0x38,0x92},
{0x54,0x92,0x54,0x92,0x91,0x12,0x11,0x22,0x12,0x22,0x14,0x42,0x10,0x94,0x11,0x08},/*"杨",0*/
/* (16 X 16 , 宋体 )*/

{0x02,0x00,0x01,0x00,0x00,0x80,0x1F,0x00,0x01,0x04,0x01,0x08,0x7D,0x90,0x05,0xA0},
{0x05,0x40,0x09,0x40,0x09,0x20,0x11,0x10,0x21,0x08,0xC1,0x06,0x05,0x00,0x02,0x00},/*"永",1*/
/* (16 X 16 , 宋体 )*/

{0x01,0x00,0x11,0x00,0x11,0x00,0x11,0x00,0x3F,0xFC,0x21,0x00,0x41,0x00,0x81,0x00},
{0x01,0x00,0x3F,0xF8,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0xFF,0xFE,0x00,0x00},/*"生",2*/
/* (16 X 16 , 宋体 )*/

2. 实验材料

  • Uno R3开发板
  • 配套USB数据线
  • 面包板及配套连接线
  • OLED显示屏

3. 实验步骤

1. 根据原理图搭建电路图。

IIC接口只需要两根线。OLED屏的VCC和GND分别连接开发板的3.3V和GND，OLED屏的SDA和SCL分别连接开发板A4和A5。

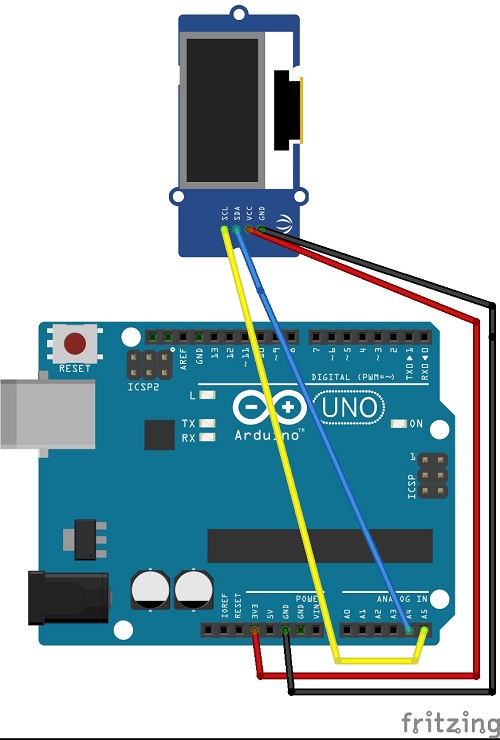

实验原理图如下图所示：

2. 新建sketch，拷贝如下代码替换自动生成的代码并进行保存。

需要两个库

库名 Adafruit_GFX Adafruit_SSD1306
搜索到名字 Adafruit-GFX-Library Adafruit_SSD1306
作者 adafruit adafruit
github地址 https://github.com/adafruit/Adafruit-GFX-Library https://github.com/adafruit/Adafruit_SSD1306
/*
  OLED显示汉字
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define OLED_RESET     4
Adafruit_SSD1306 display(128, 64, &Wire, OLED_RESET);

//取16X16汉字字模 逐行式 顺向高位在前
static const unsigned char PROGMEM str1[] =
{
  0x10,0x00,0x11,0xF8,0x10,0x10,0x10,0x20,0xFC,0x40,0x10,0x80,0x31,0xFE,0x38,0x92,
  0x54,0x92,0x54,0x92,0x91,0x12,0x11,0x22,0x12,0x22,0x14,0x42,0x10,0x94,0x11,0x08
};/*"杨",0*/

static const unsigned char PROGMEM str2[] =
{
  0x02,0x00,0x01,0x00,0x00,0x80,0x1F,0x00,0x01,0x04,0x01,0x08,0x7D,0x90,0x05,0xA0,
  0x05,0x40,0x09,0x40,0x09,0x20,0x11,0x10,0x21,0x08,0xC1,0x06,0x05,0x00,0x02,0x00
};/*"永",1*/
static const unsigned char PROGMEM str3[] =
{
  0x01,0x00,0x11,0x00,0x11,0x00,0x11,0x00,0x3F,0xFC,0x21,0x00,0x41,0x00,0x81,0x00,
  0x01,0x00,0x3F,0xF8,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0xFF,0xFE,0x00,0x00
};/*"生",2*/

void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.setTextColor(WHITE);//开像素点发光
  display.clearDisplay();//清屏

  display.setTextSize(1); //设置字体大小
  display.setCursor(35, 5);//设置显示位置
  display.println("-TonyCode-");//输出字符

  display.drawBitmap(32, 32, str1, 16, 16, 1); //画出字符对应点阵数据
  display.drawBitmap(48, 32, str2, 16, 16, 1); //画出字符对应点阵数据
  display.drawBitmap(64, 32, str3, 16, 16, 1); //画出字符对应点阵数据
  display.display();//开显示

}

void loop() {

}

https://blog.csdn.net/TonyIOT/article/details/96762017

用python转c++格式

import re
text = """
 杨(0) 永(1) 生(2)

{0x10,0x00,0x11,0xF8,0x10,0x10,0x10,0x20,0xFC,0x40,0x10,0x80,0x31,0xFE,0x38,0x92},
{0x54,0x92,0x54,0x92,0x91,0x12,0x11,0x22,0x12,0x22,0x14,0x42,0x10,0x94,0x11,0x08},/*"杨",0*/
/* (16 X 16 , 宋体 )*/

{0x02,0x00,0x01,0x00,0x00,0x80,0x1F,0x00,0x01,0x04,0x01,0x08,0x7D,0x90,0x05,0xA0},
{0x05,0x40,0x09,0x40,0x09,0x20,0x11,0x10,0x21,0x08,0xC1,0x06,0x05,0x00,0x02,0x00},/*"永",1*/
/* (16 X 16 , 宋体 )*/

{0x01,0x00,0x11,0x00,0x11,0x00,0x11,0x00,0x3F,0xFC,0x21,0x00,0x41,0x00,0x81,0x00},
{0x01,0x00,0x3F,0xF8,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0xFF,0xFE,0x00,0x00},/*"生",2*/
/* (16 X 16 , 宋体 )*/

"""

r_list = re.compile('{(.*?)}.*?{(.*?)},/\\*("\\w",\\d+)', re.S).findall(text)
# print(r_list)
for i in r_list:
    half_one = i[0]
    half_two = i[1]
    zhu = i[2]
    # print(half_one, half_two, zhu)
    final_text = """
static const unsigned char PROGMEM str%s[] =
{
  %s,
  %s
};/*%s*/""" % (r_list.index(i)+1, half_one, half_two, zhu)
    print(final_text)

2.esp8266显示

1.需要U8g2lib库

github

2.电路图

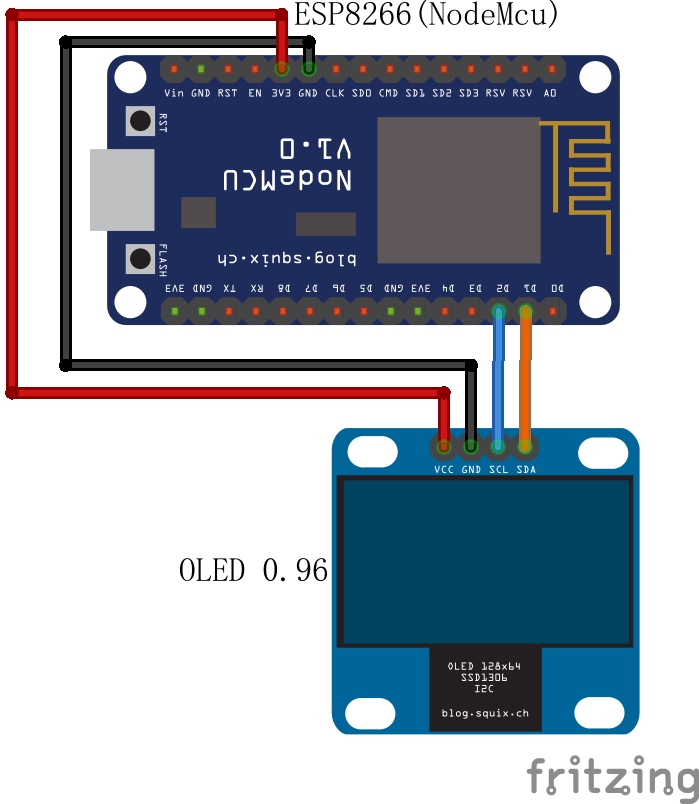

图fritzing模块来自GitHub库

GPIO overview

GPIO Function State Restrictions
0 Boot mode select 3.3V No Hi-Z
1 TX0 - Not usable during Serial transmission
2 Boot mode select
TX1		 3.3V (boot only) Don’t connect to ground at boot time
Sends debug data at boot time
3 RX0 - Not usable during Serial transmission
4 SDA (I²C) - 对应D1引脚
5 SCL (I²C) - 对应D2引脚
6 - 11 Flash connection x Not usable, and not broken out
12 MISO (SPI) - -
13 MOSI (SPI) - -
14 SCK (SPI) - -
15 SS (SPI) 0V Pull-up resistor not usable
16 Wake up from sleep - No pull-up resistor, but pull-down instead
Should be connected to RST to wake up

3.1,显示英文

#include <Arduino.h>
#include <U8g2lib.h>

#ifdef U8X8_HAVE_HW_SPI
#include <SPI.h>
#endif
#ifdef U8X8_HAVE_HW_I2C
#include <Wire.h>
#endif

U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0, /* clock=*/ D2, /* data=*/ D1, /* reset=*/ U8X8_PIN_NONE);   // 此处 D1 D2是对应焊接的脚针

void setup(void) {
  u8g2.begin();
}

void loop(void) {
  u8g2.clearBuffer();                    // clear the internal memory
  u8g2.setFont(u8g2_font_ncenB08_tr);    // choose a suitable font
  u8g2.drawStr(0,10,"Hello World!");    // write something to the internal memory
  u8g2.sendBuffer();                    // transfer internal memory to the display
  delay(1000);
}

3.2.显示汉字

#include <Arduino.h>
#include <U8g2lib.h>

#ifdef U8X8_HAVE_HW_SPI
#include <SPI.h>
#endif
#ifdef U8X8_HAVE_HW_I2C
#include <Wire.h>
#endif



U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0, /* clock=*/ D2, /* data=*/ D1, /* reset=*/ U8X8_PIN_NONE);   // All Boards without Reset of the Display


void setup(void) {
  u8g2.begin();
  u8g2.enableUTF8Print();        // enable UTF8 support for the Arduino print() function
}

void loop(void) {
  u8g2.setFont(u8g2_font_unifont_t_chinese2);  // use chinese2 for all the glyphs of "你好世界"
  u8g2.setFontDirection(0);
  u8g2.clearBuffer();
  u8g2.setCursor(0, 15);
  u8g2.print("kali论坛");
  u8g2.setCursor(0, 30);
  u8g2.print("bbskali.cn");        // Chinese "Hello World"
  u8g2.setCursor(0, 45);
  u8g2.print("kali黑客教学");

  u8g2.sendBuffer();

  delay(1000);
}

显示多行文字

#include <Arduino.h>
#include <U8g2lib.h>

#ifdef U8X8_HAVE_HW_SPI
#include <SPI.h>
#endif
#ifdef U8X8_HAVE_HW_I2C
#include <Wire.h>
#endif


U8G2_SSD1306_128X64_NONAME_1_SW_I2C u8g2(U8G2_R0, /* clock=*/ D2, /* data=*/ D1, /* reset=*/ U8X8_PIN_NONE);   // All Boards without Reset of the Display

#define FONT u8g2_font_wqy14_t_gb2312b

//#define FONT u8g2_font_wqy16_t_chinese1
//#define FONT u8g2_font_wqy16_t_gb2312b

// The next two macros define the scroll speed of the short story
#define SCROLL_DELTA 2
#define SCROLL_DELAY 200


const char c_str[] =
"Shen Nong\n\n"
"KALI论坛介绍\n"
"kali论坛创建于20\n"
"17年，站长Priess\n"
"本论坛基于kali安\n"
"全研究和网络安全\n"
"为方便小伙伴学习\n"
"我们搭建了此论坛\n"
"论坛学习完全免费\n"
"我们的网址:\n"
"bbskali,cn\n"
"微信公众号：\n"
"【kali黑客教学】\n"
"感谢大家关注。\n";


char buf[48];            // there are at most 8 chinese glyphs per line, max buf size is 8*3 = 24

uint8_t total_lines;        // the total number of lines in the story
uint8_t i;                // loop variable for the lines
uint8_t line_cnt;        // number of lines to draw, usually equal to lines_per_draw
uint8_t start_line;        // topmost visible line, derived from top_window_pos
uint8_t lines_per_draw;    // how many lines to draw on the screen, derived from font and display height
uint16_t glyph_height;    // height of the glyphs

uint16_t top_window_pos;        // defines the display position in pixel within the text
uint16_t total_height;            // total height in pixel, derived from font height and total_lines
u8g2_uint_t top_offset;            // offset between the first visible line and the display


void setup(void) {

  /* U8g2 Project: SSD1306 Test Board */
  pinMode(D2, OUTPUT);
  pinMode(D1, OUTPUT);
  digitalWrite(10, 0);
  digitalWrite(9, 0);

  /* U8g2 Project: T6963 Test Board */
  //pinMode(18, OUTPUT);
  //digitalWrite(18, 1);

  /* U8g2 Project: KS0108 Test Board */
  //pinMode(16, OUTPUT);
  //digitalWrite(16, 0);

  /* U8g2 Project: LC7981 Test Board, connect RW to GND */
  //pinMode(17, OUTPUT);
  //digitalWrite(17, 0);

  /* U8g2 Project: Pax Instruments Shield: Enable Backlight */
  //pinMode(6, OUTPUT);
  //digitalWrite(6, 0);

  u8g2.begin();


  /* select a font */

 // u8g2.setFont(u8g2_font_wqy12_t_chinese1);    // two unknown glyphs
 //u8g2.setFont(u8g2_font_wqy12_t_chinese3);    // two unknown glyphs

  //u8g2.setFont(u8g2_font_wqy12_t_gb2312a);    // ";" is missing
  //u8g2.setFont(u8g2_font_wqy12_t_gb2312b);    // all glyphs available

  u8g2.setFont(FONT);

  /* calculate the length of the text in lines */
  total_lines = u8x8_GetStringLineCnt(c_str);

  /* get the height of the glyphs */
  glyph_height = u8g2.getMaxCharHeight();

  /* calculate the height of the text in pixel */
  total_height = (uint16_t)total_lines * (uint16_t)glyph_height;


  /* calculate how many lines must be drawn on the screen */
  lines_per_draw = u8g2.getDisplayHeight() / glyph_height;
  lines_per_draw += 2;

  /* start at the top of the text */
  top_window_pos = 0;

}

void loop(void) {

  start_line = top_window_pos / glyph_height;
  top_offset = top_window_pos % glyph_height;

  line_cnt = total_lines - start_line;
  if ( line_cnt > lines_per_draw )
    line_cnt = lines_per_draw;

  u8g2.firstPage();
  do {
      for( i = 0; i < line_cnt; i++ )
      {
    /* copy a line of the text to the local buffer */
    u8x8_CopyStringLine(buf, i+start_line, c_str);

    /* draw the content of the local buffer */
    u8g2.drawUTF8(0, i*glyph_height-top_offset +glyph_height, buf);
      }
  } while ( u8g2.nextPage() );

  delay(SCROLL_DELAY);
  top_window_pos += SCROLL_DELTA;
}

3. TFT 1.3寸彩屏使用

  1.3TFT  ST7789 IPS SPI display.
  接线
 TFT_DC    8
 TFT_RST   9
 TFT_SDA   11
 TFT_SCL 13
 GND
 VCC   5V/3.3V 都行
 BLK不用接

文件下载https://cloud.189.cn/t/aqYNZrFVFNni

/***************************************************
  1.3TFT  ST7789 IPS SPI display.
  接线
 TFT_DC    8
 TFT_RST   9
 TFT_SDA   11
 TFT_SCL 13
 GND
 VCC   5V/3.3V 都行
 BLK不用接
 ****************************************************/

#include <Adafruit_GFX.h>    // Core graphics library by Adafruit
#include <Arduino_ST7789.h> // Hardware-specific library for ST7789 (with or without CS pin)
#include <SPI.h>
#include <SimpleDHT.h>

#define TFT_DC    8
#define TFT_RST   9
//#define TFT_CS    10 // only for displays with CS pin
#define TFT_MOSI  11   // for hardware SPI data pin (all of available pins)
#define TFT_SCLK  13   // for hardware SPI sclk pin (all of available pins)
#define DebugSerial Serial
//You can use different type of hardware initialization
//using hardware SPI (11, 13 on UNO; 51, 52 on MEGA; ICSP-4, ICSP-3 on DUE and etc)
//Arduino_ST7789 tft = Arduino_ST7789(TFT_DC, TFT_RST); //for display without CS pin
//Arduino_ST7789 tft = Arduino_ST7789(TFT_DC, TFT_RST, TFT_CS); //for display with CS pin
//or you can use software SPI on all available pins (slow)
Arduino_ST7789 tft = Arduino_ST7789(TFT_DC, TFT_RST, TFT_MOSI, TFT_SCLK); //for display without CS pin
//Arduino_ST7789 tft = Arduino_ST7789(TFT_DC, TFT_RST, TFT_MOSI, TFT_SCLK, TFT_CS); //for display with CS pin



int pinDHT11 = 4;
SimpleDHT11 dht11(pinDHT11);

float p = 3.1415926;

byte temp2 = 0;
byte humi2 = 0;
byte flag = 0;
//室
const unsigned char PROGMEM str1[] =
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x03,0x80,0x00,
0x00,0x01,0x80,0x00,0x00,0x00,0x80,0x00,0x04,0x00,0x80,0x10,0x07,0xFF,0xFF,0xF8,
0x0C,0x00,0x00,0x30,0x0C,0x00,0x00,0x60,0x1C,0x00,0x01,0x40,0x03,0xFF,0xFF,0x80,
0x00,0x07,0x00,0x00,0x00,0x0C,0x08,0x00,0x00,0x18,0x06,0x00,0x00,0x30,0x03,0x00,
0x00,0x40,0x01,0x80,0x01,0xFF,0xFF,0xC0,0x01,0xFE,0x00,0xC0,0x00,0x81,0x00,0x80,
0x00,0x01,0xC0,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x81,0x80,0x03,0xFF,0xFF,0xC0,
0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,
0x00,0x01,0x80,0x18,0x3F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,};

//内
const unsigned char PROGMEM str2[] =
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x01,0xC0,0x00,
0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,
0x04,0x01,0x80,0x40,0x07,0xFF,0xFF,0xF0,0x06,0x01,0x80,0x60,0x06,0x01,0x80,0x60,
0x06,0x01,0x00,0x60,0x06,0x03,0x00,0x60,0x06,0x03,0x00,0x60,0x06,0x03,0xC0,0x60,
0x06,0x06,0x60,0x60,0x06,0x06,0x38,0x60,0x06,0x0C,0x1C,0x60,0x06,0x18,0x0E,0x60,
0x06,0x10,0x06,0x60,0x06,0x60,0x06,0x60,0x06,0x80,0x02,0x60,0x07,0x00,0x00,0x60,
0x06,0x00,0x00,0x60,0x06,0x00,0x00,0x60,0x06,0x00,0x00,0x60,0x06,0x00,0x18,0xC0,
0x06,0x00,0x07,0xC0,0x06,0x00,0x01,0xC0,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,};
//温
const unsigned char PROGMEM str3[] =
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x08,0x00,0x80,
0x06,0x0F,0xFF,0xC0,0x03,0x0C,0x00,0x80,0x03,0x0C,0x00,0x80,0x00,0x2C,0x00,0x80,
0x00,0x4C,0x00,0x80,0x00,0x4F,0xFF,0x80,0x00,0x4C,0x00,0x80,0x30,0x4C,0x00,0x80,
0x18,0x8C,0x00,0x80,0x0C,0x8C,0x00,0x80,0x08,0x8F,0xFF,0x80,0x01,0x0C,0x00,0x80,
0x01,0x08,0x00,0x00,0x01,0x00,0x00,0x00,0x03,0x20,0x00,0x20,0x02,0x3F,0xFF,0xF0,
0x02,0x31,0x8C,0x60,0x06,0x31,0x8C,0x60,0x3E,0x31,0x8C,0x60,0x0E,0x31,0x8C,0x60,
0x0C,0x31,0x8C,0x60,0x0C,0x31,0x8C,0x60,0x0C,0x31,0x8C,0x60,0x0C,0x31,0x8C,0x60,
0x0C,0x31,0x8C,0x6C,0x0D,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,};
//度
const unsigned char PROGMEM str4[] =
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0xC0,0x00,
0x00,0x00,0xE0,0x10,0x04,0x00,0x40,0x38,0x07,0xFF,0xFF,0xFC,0x06,0x04,0x04,0x00,
0x06,0x07,0x07,0x00,0x06,0x06,0x06,0x00,0x06,0x06,0x06,0x30,0x07,0xFF,0xFF,0xF8,
0x06,0x06,0x06,0x00,0x06,0x06,0x06,0x00,0x06,0x06,0x06,0x00,0x06,0x06,0x06,0x00,
0x06,0x07,0xFE,0x00,0x06,0x06,0x06,0x00,0x04,0x00,0x01,0x00,0x04,0x3F,0xFF,0x80,
0x0C,0x04,0x03,0x80,0x0C,0x02,0x07,0x00,0x0C,0x03,0x06,0x00,0x08,0x01,0x0C,0x00,
0x08,0x00,0xD8,0x00,0x18,0x00,0x70,0x00,0x10,0x00,0xF8,0x00,0x10,0x03,0x9E,0x00,
0x20,0x0E,0x07,0xF8,0x20,0x70,0x00,0xF8,0x47,0x80,0x00,0x10,0x00,0x00,0x00,0x00,};

//湿
const unsigned char PROGMEM str5[] ={0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x00,0x00,
0x06,0x0F,0xFF,0xE0,0x07,0x0C,0x00,0x60,0x03,0x0C,0x00,0x60,0x03,0x0C,0x00,0x60,
0x00,0x2C,0x00,0x60,0x00,0x4F,0xFF,0xE0,0x60,0x4C,0x00,0x60,0x30,0x4C,0x00,0x60,
0x1C,0x8C,0x00,0x60,0x0C,0x8C,0x00,0x60,0x0C,0x8F,0xFF,0xE0,0x01,0x0C,0x84,0x60,
0x01,0x08,0xC6,0x00,0x03,0x00,0xC6,0x00,0x02,0x00,0xC6,0x18,0x06,0x20,0xC6,0x1C,
0x06,0x10,0xC6,0x30,0x7C,0x18,0xC6,0x60,0x0C,0x0C,0xC6,0x40,0x0C,0x0C,0xC6,0x80,
0x0C,0x0C,0xC7,0x00,0x0C,0x04,0xC6,0x00,0x1C,0x00,0xC6,0x00,0x1C,0x00,0xC6,0x00,
0x1C,0x00,0xC6,0x08,0x0C,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,};

//永
const unsigned char PROGMEM str6[]=
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x00,0x00,0x00,0x03,0x80,0x00,
0x00,0x01,0xC0,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x80,0x00,0x00,0xFF,0xE0,0x40,0x00,0x00,0xC0,0x60,0x00,0x00,0xC0,0xE0,
0x00,0x00,0xC0,0xC0,0x00,0x10,0xA1,0x80,0x1F,0xF8,0xA3,0x00,0x00,0x30,0xA6,0x00,
0x00,0x30,0x9C,0x00,0x00,0x60,0x98,0x00,0x00,0x60,0x88,0x00,0x00,0xC0,0x8C,0x00,
0x00,0xC0,0x8C,0x00,0x01,0x80,0x86,0x00,0x01,0x00,0x83,0x00,0x03,0x00,0x83,0x80,
0x06,0x00,0x81,0xC0,0x0C,0x00,0x80,0xF0,0x08,0x00,0x80,0x7C,0x10,0x31,0x80,0x30,
0x20,0x0F,0x80,0x10,0x00,0x03,0x80,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00,0x00,};

//生
const unsigned char PROGMEM str7[]=
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x01,0xC0,0x00,
0x00,0x81,0x80,0x00,0x00,0xE1,0x80,0x00,0x01,0xC1,0x80,0x00,0x01,0x81,0x80,0x00,
0x01,0x81,0x80,0x00,0x03,0x01,0x80,0x60,0x03,0xFF,0xFF,0xF0,0x02,0x01,0x80,0x00,
0x06,0x01,0x80,0x00,0x04,0x01,0x80,0x00,0x08,0x01,0x80,0x00,0x08,0x01,0x80,0x00,
0x10,0x01,0x80,0x80,0x20,0x01,0x81,0xC0,0x03,0xFF,0xFF,0xC0,0x00,0x01,0x80,0x00,
0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,
0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x18,
0x3F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,};


const unsigned char PROGMEM str8[]={0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xF0,0x00,
0x00,0xFF,0xFF,0x00,0x03,0xFF,0xFF,0xC0,0x0F,0xC0,0x03,0xF0,0x1F,0x00,0x00,0xF8,
0x7C,0x00,0x00,0x3C,0xF0,0x00,0x00,0x0E,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,};/*"︵",0*/

void setup(void) {
  Serial.begin(9600);
  Serial.print("Hello! ST7789 TFT Test");

  tft.init(240, 240);   // initialize a ST7789 chip, 240x240 pixels

  Serial.println("Initialized");
//    tft.initR(INITR_144GREENTAB);
    tft.setRotation(2);      //彩屏显示数据位置
    tft.setTextWrap(false);
    tft.fillScreen(BLACK);   //背景颜色设置
}

void loop() {

  tft.setCursor(0, 0); //位置(x, y)
  tft.setTextSize(4); // 字体大小
  tft.setTextColor(YELLOW);  // 字体颜色
  tft.print("by"); //画出字符对应点阵数据

  tft.drawBitmap(64, 0, str6,  32,32, BLUE); //画出字符对应点阵数据
  tft.drawBitmap(96, 0, str7,  32,32, BLUE); //画出字符对应点阵数据

  byte temperature = 0;
  byte humidity = 0;

  int err = SimpleDHTErrSuccess;
  if ((err = dht11.read(&temperature, &humidity, NULL)) != SimpleDHTErrSuccess) {
    Serial.print("Read DHT11 failed, err=");
    Serial.println(err);
    delay(1000);
    return;
  }

  Serial.print("Sample OK: ");
  Serial.print((int)temperature); Serial.print(" ℃, ");
  Serial.print((int)humidity); Serial.println(" %");


 tft.drawBitmap(0, 80, str1,  32,32, 0x7FF); //画出字符对应点阵数据
 tft.drawBitmap(32, 80, str2,  32,32, 0x7FF); //画出字符对应点阵数据
 tft.drawBitmap(64, 80, str3,  32,32, 0x7FF); //画出字符对应点阵数据
 tft.drawBitmap(96, 80, str4,  32,32, 0x7FF); //画出字符对应点阵数据

  tft.setCursor(128, 80); //位置(x, y)
  tft.setTextSize(4); // 字体大小
  tft.setTextColor(0x7FF);  // 字体颜色
  tft.print(":"); //画出字符对应点阵数据
  tft.print(temperature); //画出字符对应点阵数据

  if (temp2 != temperature){
      tft.setCursor(128, 80); //位置(x, y)
      tft.setTextSize(4); // 字体大小
      tft.setTextColor(BLACK);
      tft.print(":");
      tft.print(temp2); //画出字符对应点阵数据
      temp2 = temperature;
    }


 tft.drawBitmap(0, 120, str1,  32,32, 0xFFFF ); //画出字符对应点阵数据
 tft.drawBitmap(32, 120, str2,  32,32, 0xFFFF); //画出字符对应点阵数据
 tft.drawBitmap(64, 120, str5,  32,32, 0xFFFF); //画出字符对应点阵数据
 tft.drawBitmap(96, 120, str4,  32,32, 0xFFFF); //画出字符对应点阵数据

  tft.setCursor(128, 120); //位置(x, y)
  tft.setTextSize(4); // 字体大小
  tft.setTextColor(0xFFFF);  // 字体颜色
  tft.print(":"); //画出字符对应点阵数据
  tft.print(humidity); //画出字符对应点阵数据

  if (humi2 != humidity){
      tft.setCursor(128, 120); //位置(x, y)
      tft.setTextSize(4); // 字体大小
      tft.setTextColor(BLACK);
      tft.print(":");
      tft.print(humi2); //画出字符对应点阵数据
      humi2 = humidity;

    }

if (temperature <= 25 && 18<=temperature && 40 <= humidity && humidity <= 70)
{
  tft.setCursor(0, 170); //位置(x, y)
  tft.setTextSize(4); // 字体大小
  tft.setTextColor(RED);  // 字体颜色
  tft.print("(^_^)");
  Serial.println("开心");

//  //  黑色
//  tft.setCursor(0, 170); //位置(x, y)
//  tft.setTextSize(4); // 字体大小
//  tft.setTextColor(BLACK);  // 字体颜色
//  tft.print("(^");
//  tft.drawBitmap(56, 170, str8,  32,32, BLACK);
//  tft.setCursor(96, 170); //位置(x, y)
//  tft.setTextSize(4); // 字体大小
//  tft.setTextColor(BLACK);  // 字体颜色
//  tft.print("^)");

  }

 else{
  Serial.println("难过");
  tft.setCursor(0, 170); //位置(x, y)
  tft.setTextSize(4); // 字体大小
  tft.setTextColor(RED);  // 字体颜色
  tft.print("(^");
  tft.drawBitmap(56, 170, str8,  32,32, RED);
  tft.setCursor(96, 170); //位置(x, y)
  tft.setTextSize(4); // 字体大小
  tft.setTextColor(RED);  // 字体颜色
  tft.print("^)");

//      //  黑色
//      tft.setCursor(0, 170); //位置(x, y)
//      tft.setTextSize(4); // 字体大小
//      tft.setTextColor(BLACK);  // 字体颜色
//      tft.print("(^_^)");

  }

}
